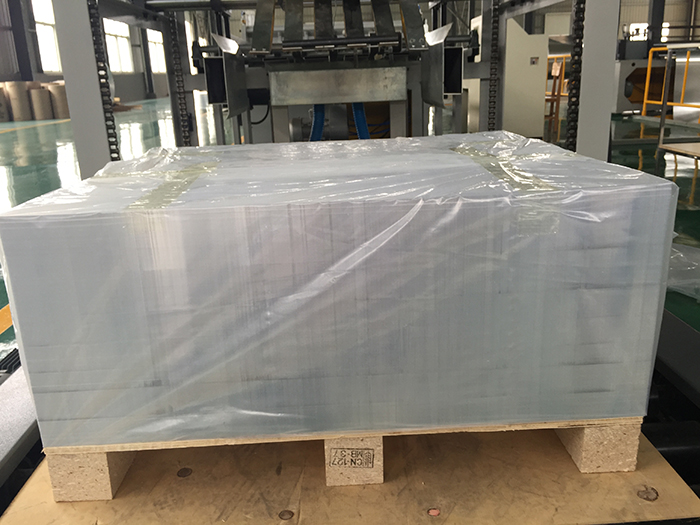

4343/3003/4343 aluminum sheet
Author:Frank Time:2023-05-17
＊Perfect property for fine stamping
＊Good consistency for any fin mill
＊Excellent collapse resistance and strength after brazing
| Performance index of evaporator fin material | ||||||||
|---|---|---|---|---|---|---|---|---|
|
Alloy |
Temper |
Thickness (mm) |
Tolerance (mm) |
Clad rate(%) |
Mechanical property | |||
|
Tensile Strength (MPa) |
Yield Strength (MPa) |
Elongation Min.(%) |
||||||
| 3003 | H14 | 0.08~0.12 | ±0.005 | None | 150~200 | ≥120 | 1 | |
| Performance index of evaporator board material | ||||||||
|
Alloy |
Temper |
Thickness (mm) |
Tolerance (mm) |
Clad rate(%) |
Mechanical property | |||
|
Tensile Strength (MPa) |
Yield Strength (MPa) |
Elongation Min.(%) |
||||||
| 4343/3003/4343 | O | 0.4~8.3 | ±0.02 | 8~12 | 100~150 | ≥45 | 27 | |
| 4343/SA-5/4343 | O | 0.4~8.3 | ±0.02 | 8~12 | 110~160 | ≥45 | 27 | |
| 4343/3003/4045 | O | 0.8~8.3 | ±0.03 | 8~12 | 100~150 | ≥45 | 27 | |
| 4343/SA-5/4045 | O | 0.8~8.3 | ±0.03 | 8~12 | 110~156 | ≥45 | 27 | |
|
＊4343 can be replaced by 4045/4047/4104/4004etc, according to customer’s requirement. ＊Alloy、specification and mechanical property can be customized according to different requirement. |
||||||||
